DELIVERY SPOOLS

service-image

Figure 1

service-image

Figure 2

Product Description

Enamelled round winding wires

These spools are generally according to speciﬁcations:

IEC 60264-2-2: Speciﬁcation for Cylindrical Barrelled plastic spools, returnable type
IEC 60264-3-2: Speciﬁcation for Taper Barrelled plastic spools, returnable type.

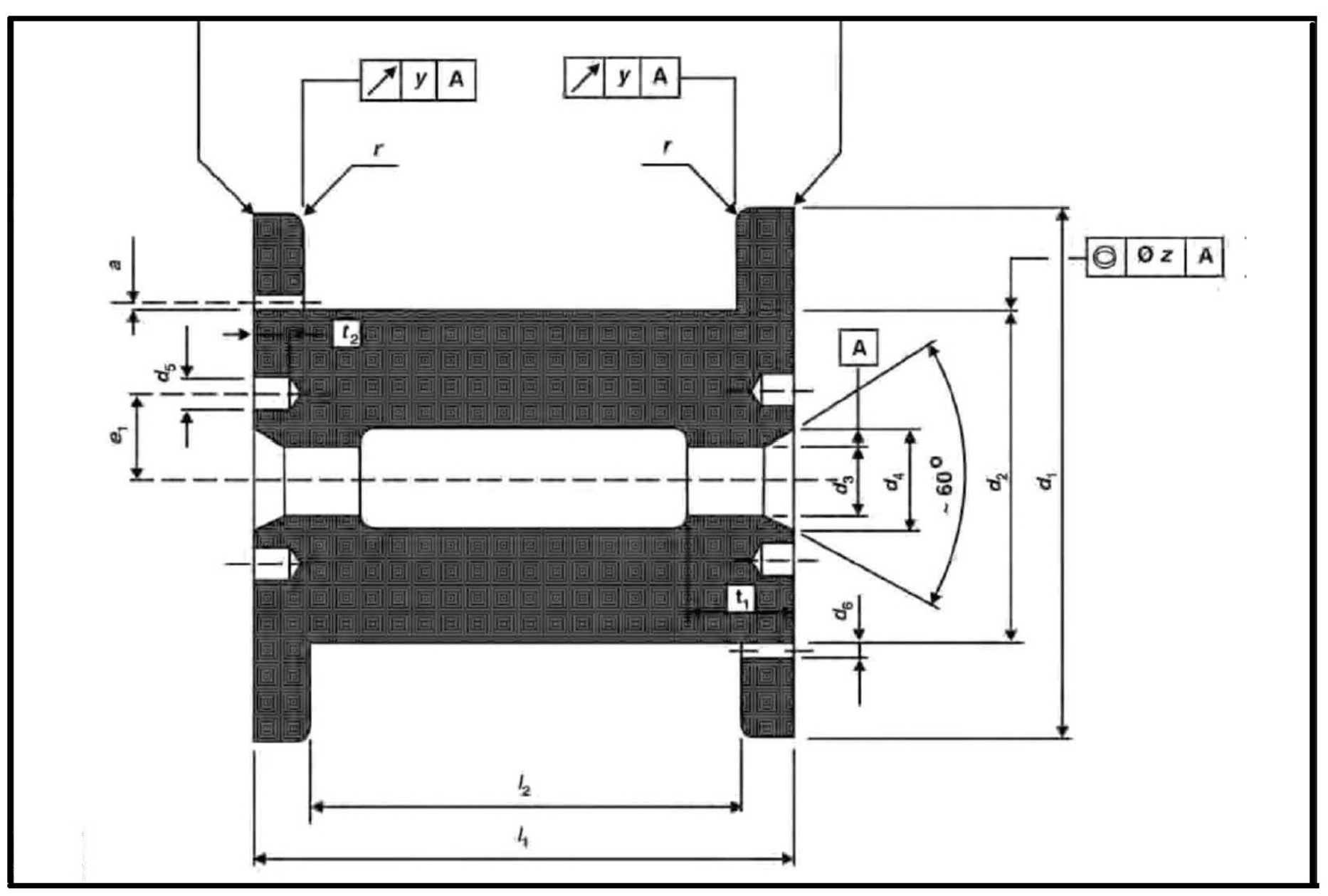

TABLE 1: DIMENSIONS OF CYLINDRICAL BARRELLED SPOOLS (RETURNABLE) (SEE FIGURE 1)

Spool type	Dimension																	Net weight max. (Kg.)	APPLICA BLE SPECS
	d1	d2	d3		d4	d5	d6	l1	l2		a	t1	t2	Z	Y	e1	r
			Nom.	Tol.					Nom.	Tol.
125	125	80	16	0.2	24	7	3	125	100	0.2	15	25	2	0.6	0.2	20	3			3	ICE 60264-2-2
160	160	100	22	0.2	34	13	3	160	128	0.2	15	28	12	0.6	0.3	32	4			7
200	200	125	22	0.2	34	13	3	200	160	0.3	15	32	12	0.6	0.3	32	4	14
250	250	160	22	0.2	34	13	4	200	160	0.4	2	36	12	1	0.4	32	5	22
265	265	160	40	0.2	48	13	4	200	160	0.4	2			1	0.4	40	5	25
355	355	224	22	0.2	60	26	4	200	160	0.4	25	40	30	1.2	0.5	80	5	48
125	125	65	22	0.2	30	8	4	90	70	0.2	2			0.6	0.2	24	2	25	INDIAN EQUIVALENT
160	160	94	36	0.2	40	13	4	124	100	0.2	2			0.6	0.2	24	2	5
250	250	112	40	0.2	48	13	4	142	114	0.4	2			1	0.4	32	5	22
410w	410	200	40	0.2	50	16	6	215	175	0.6	3			1.2	0.5	80	6	70
500w	500	290	40	0.2	50	16	8	210	165	0.6	4			1.2	0.5	80	6	100

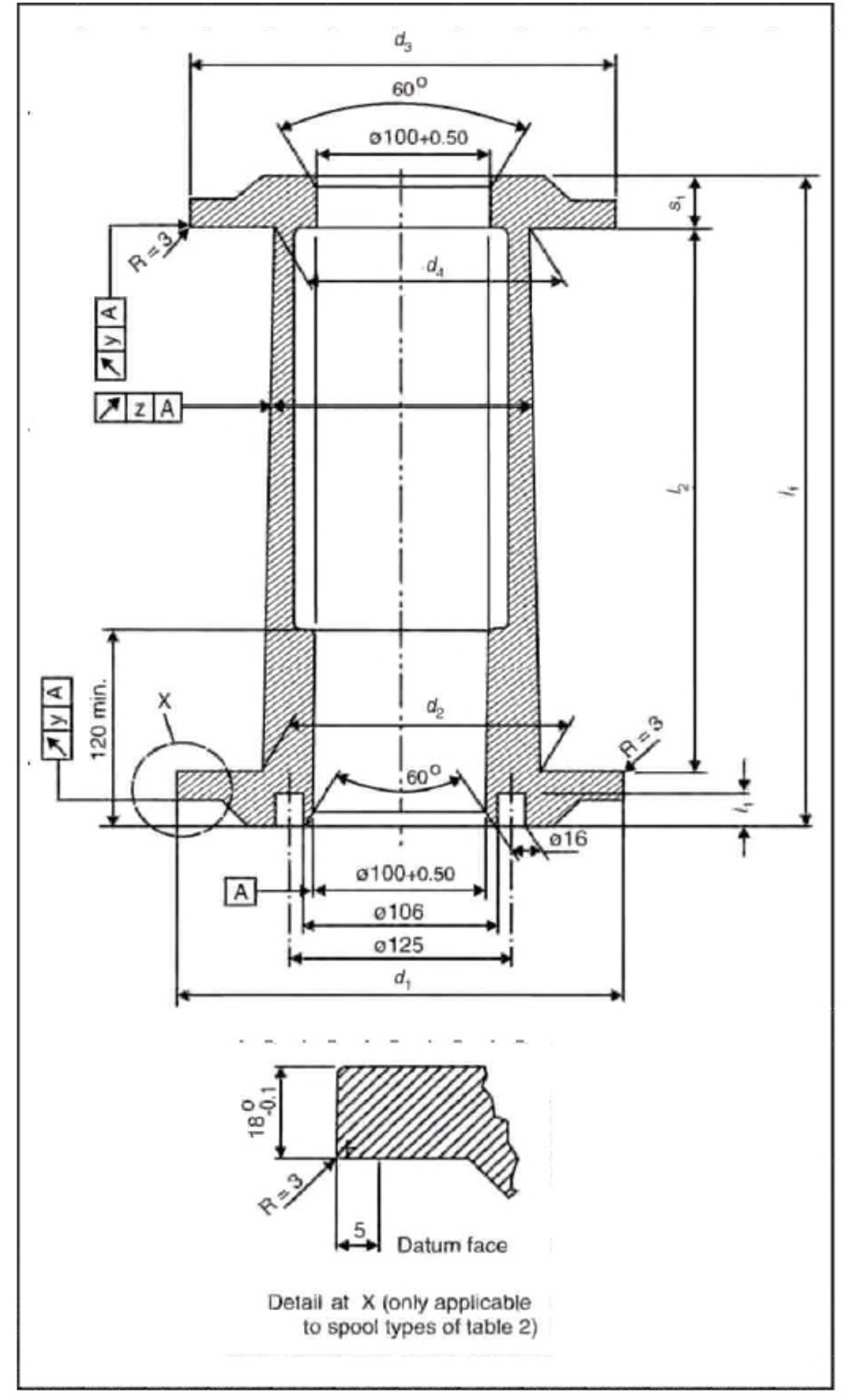

TABLE 2 : DIMENSIONS OF TAPER BARRELLED SPOOLS (RETURNABLE) (SEE FIGURE 2)

Parallel Barrel	Wire Range in mm.	Dimension in mm							Real Capacity(Kg)	Applicable Specs
DIN 4683 / IEC 60264 - 3		Flange Diameter		Barrel Diameter		Bore Dia	Traverse Length	Applicable Specs		IEC 60264-2-2
		Flange Diameter		Barrel Diameter		Bore Dia	Traverse Length	Applicable Specs
		d1	d3	d2	d4	d5	l1	l2
PT - 01	0.125 - 0.150	105	95	58	53	22	100	120	1
PT - 04	0.190 - 0.250	140	125	84	73	25	170	198	4
PT - 10	0.100 - 0.315	180	160	110	95	30	200	227	10
PT - 15	0.100 - 0.315	200	180	108	95	30	200	227	15
PT - 20	0.200 - 0.500	225	210	150	132	32	248	278	20
PT - 25	0.500 - 1.120	225	210	128	108	32	248	278	25
PT - 45	0.355 - 2.000	250	236	160	140	100	335	400	45
PT - 90	1.400 - 2.00	315	300	200	180	100	425	500	90

Note:

Center Hole-PT4-Φ26 + 0.20, Center Hole-PT10 Φ-30+0.20

RECTANGULAR TAPED CONDUCTORS [PAPER, FIBER GLASS, KAPTON]

Dimensions of Drums (All dimensions in mm)

Flange Dia	Barrel Dia	Traverse	Flange thick	Bare Dia	Catch hole Distance	Slot/hole on barrel	No. of iron tube	Wt Kgs


450	300	240	20/22	52	125	15	5	65
500	300	240	20/24	52	125	15	5	115
260	300	240	20/24	52	125	15	5	150
610	300	240	20/24	52	125	15	6	180
710	400	300	22/24	52	170	15	7	240
710**	560	300	22/26	52	170	15	7	120
760**	560	300	22/26	52	170	15	8	210
810**	560	300	22/26	52	170	15	10	280
850**	560	300	22/30	52	170	15	10	350
910**	560	300	22/30	52	170	15	12	400
1000**	650	300	35/35	52	170	15	14	500
1100**	650	350	40	85	170	16	8*	800
1200**	650	400	40	85	170	20	8*	1100

Note:

Catch hole for all drums will be 16mm.
* Rods of 16mm diameter.
**One additional hole of 18mm to be provided on ﬂange at 290mm distance from centre.
